Dutch Lighting Innovations presents the JOULE-series 1000w DE system. This proprietary engineered design has reset the bar for horticulture production specifically.
Input voltage: 208-240V
Input Voltage Range: ± 10%
Rated Power: 1060W
Dimming with switch: 600W - 750W - 825W - 1000W - 1150W
Dimming with controller: 600W - 1150W
Frequency: 50/60 Hz
Typical Current: 4.5A @ 240V/1000W
Maximum Current: 5.5A @ 208V/1150W
Inrush Current: ≤ 40A
Power Factor: ≥ 0,98
Dimensions: 571 x 284 x 178mm 22.5 x 11.2 x 7.0 inch
Weight: 5.2 kg / 12.8 lbs
Extra Low-Profile Housing
Less Daylight Interception
Improved Heatsink
Increased Driver Efficiency
LED Indicator
Status & Error Diagnostics
Gore-Text Plug
Ventilation Plug
Built in Spirit Level
Achieve Perfectly Even Light Spread
Improved Reflector
Superior Light Spread & Reflection
Time for Improvement
For Decades growers have settled for lighting options that are not 100% tailored for their use and crop. Grow light manufacturers are always trying to appease the mass populations of growers, rather than honing in on exactly what they need for optimal performance, yields, and most important quality.
The engineering principles behind the DLI Open Reflector are a culmination of over a decade of research and development. The team works with a ranging group of some of the best horticulturists around the globe; each who specialise in plant and varietal specific production processes for the ornamental, and commercial flower market. Dutch Lighting Innovations has allowed these groups a new level of consistency, reliability, and quality unparalleled in the niche world of growing the best flowers and plants on Earth!
How it works
The DLI reflectors are manufactured to have the highest possible total reflectance at all wavelengths from 400 to 700 nm giving excellent PAR rendition. The integrated hemispherical reflectance is over 95% with an absence of iridescence colours in the louvre.
The DLI reflectors are made from an electrochemically brightened high purity aluminium substrate coil, and start with an anodised base coat which gives a hard support to minimize abrasion damage. The material is then treated under vacuum with specially developed processes to maximise coating adhesion and is vacuum coated with a super pure reflection layer of 99.99% pure aluminium.
These reflection layers are overlaid with a dual layer oxide system tuned for maximum visible reflection enhancement. This serves to increase the overall reflectivity provided by the metallic layers and adds protection against damage.

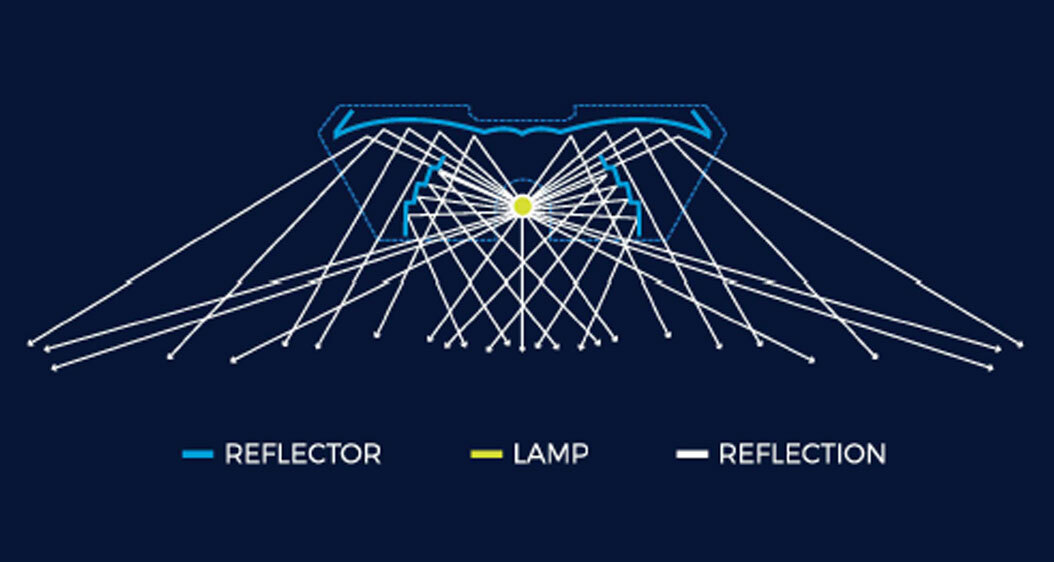

Efficiency and uniformity have been the main focus in the development of the Flowers-only reflector. Each ray of light coming from the lamp will either be transmitted directly to the plants or will only hit the 99,99% pure aluminium once before being transmitted to the plant. The unique design of the DLI reflector and the high uniformity of light the reflector projects results in less hotspots on the canopy and a more even plant growth.
View or download the product brochure here.
