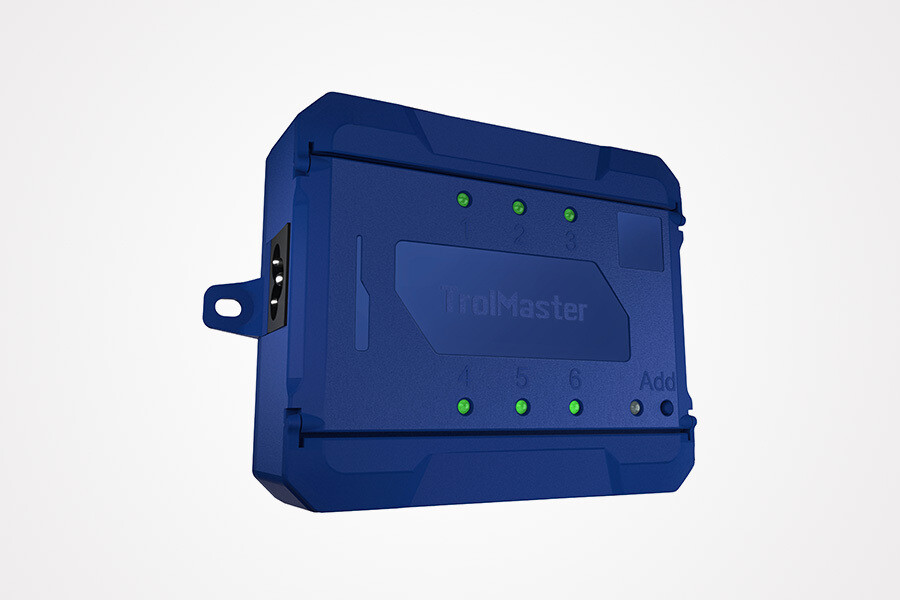

24V Control Board (OA6-24)
Product Details
Brand:
Trolmaster
The OA6-24 control board is designed to control multiple 24vac solenoid valves.
It provides an easy and efficient method to control up to 6 valves… each with individual timer settings. Up to 5 OA6-24 can be connected to a single Aqua-x providing a maximum of 30 individually controlled outputs to connect to your solenoid valves. The Aqua-x can also provide a “master pump link” by using a DSP-1 along with the OA6-24. Connecting a DSP-1 to the OA6-24 provides an automatic “pump link” between the DSP-1 and the OA6-24. When any of the 24vac irrigation zones are activated on the OA6-24, the DSP-1 will automatically turn on the pump.
Features
LED Power Indicator
Addressing Button
6 Individually-Controlled 24V Outputs
Individual LED Indicator for Each Output
Double RJ12 Cable Sockets for Daisy Chain Connectivity
Package Content
1 x 24V Control Board
1 x 16ft RJ12 Cable
Specifications
Input Voltage: 110-240 VAC
Max Input Current: 0.2A
Max Output Voltage/Current: 24VAC/0.2A per output
Working Environments: Temperature 32°-122°F, Humidity=90%
Packaging Dimensions: 275mm(L) x 164mm(W) x 40mm(H)
